50MHz~200MHz 14.0mm*9.0mm, Wide Temperature Range, Ultra Stable OCXO

Quick Detail:

· Aluminum housing

· 3.3V Operating Voltage (VCC)

· -55℃~+85℃ operating temperature

· SMD package

· High precision

· Low phase noise

· CMOS or Sine Wave Output Waveform

· CE, RoHS, REACH compliant

· 1 Year Warranty

Description:

The LT-CR-BO0914H is the newest addition to ZR’s line of OCXOs. We provide sinewave or CMOS output waveforms with a phase noise of -100 dBc/1Hz (at 10 Hz offset) and have a frequency stability of ±50 ppb (vs. temperature). These OCXOs are fabricated using an SC-cut crystal that offers high stability and low aging. They are available in surface-mount packages that measure 14.6 x 9.6 x 8.0 mm. These OCXOs are ideal for satellite communications, base stations, measuring instruments, etc...

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

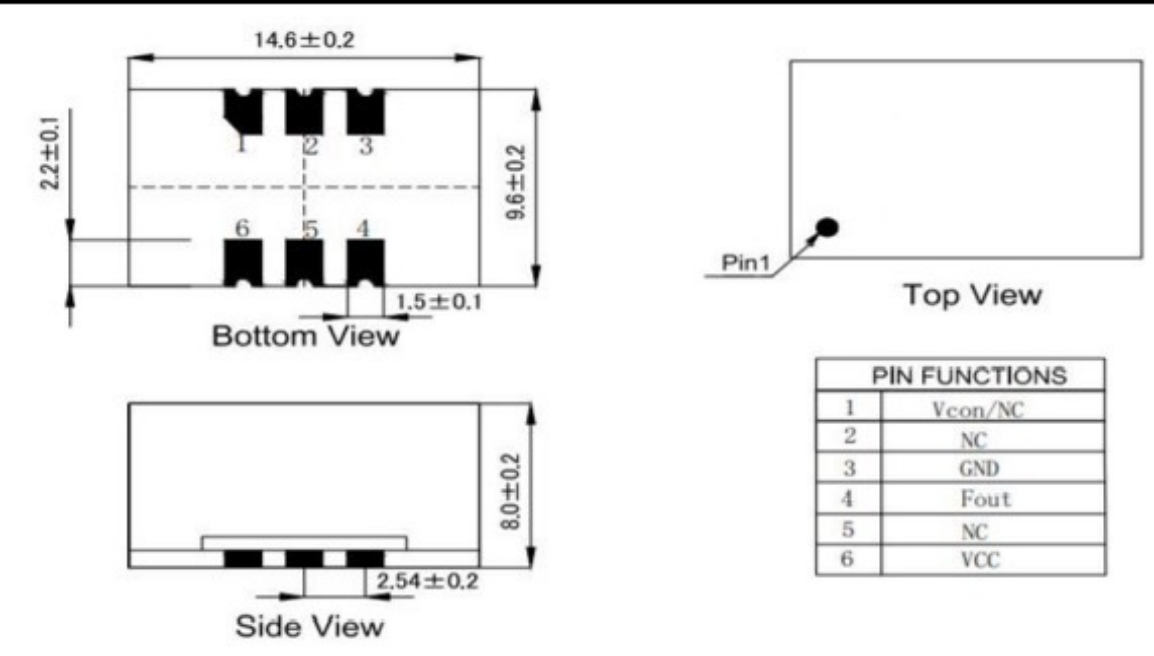

Outline Drawing (Unit: mm):
