10~125MHz 12.6*20.2mm, Ultra Wide Operating Temp, Low Phase Noise TCXO

Quick Detail:

· Aluminum housing

· -0.5/6V VDD options

· -55℃~95℃ operating temperature

· Small package

· High precision

· Low phase noise

· Optional three-state control function

· Anti-overload > 30000g

· CE, RoHS, REACH compliant

· 1 Year Warranty

Description:

Th e LT-CR-BT122 0 is the newest addition to ZR’s line of TCXOs. The standard part offers an ultra-tight stability of ±0.1ppm to ±2.0ppm over -55ºC to +95ºC across a supply voltage range of -0.5V/6.0V. The bt1220 uses a high refresh rate, or frequency calibration rate, to maintain a linear frequency output during temperature compensation. The 20.2 mm x 12.6 mm ceramic package and options for 1,000- or 3,000-piece reels make these components ideal for satellite communication, military communication equipment, base station, test and measurement equipment.

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

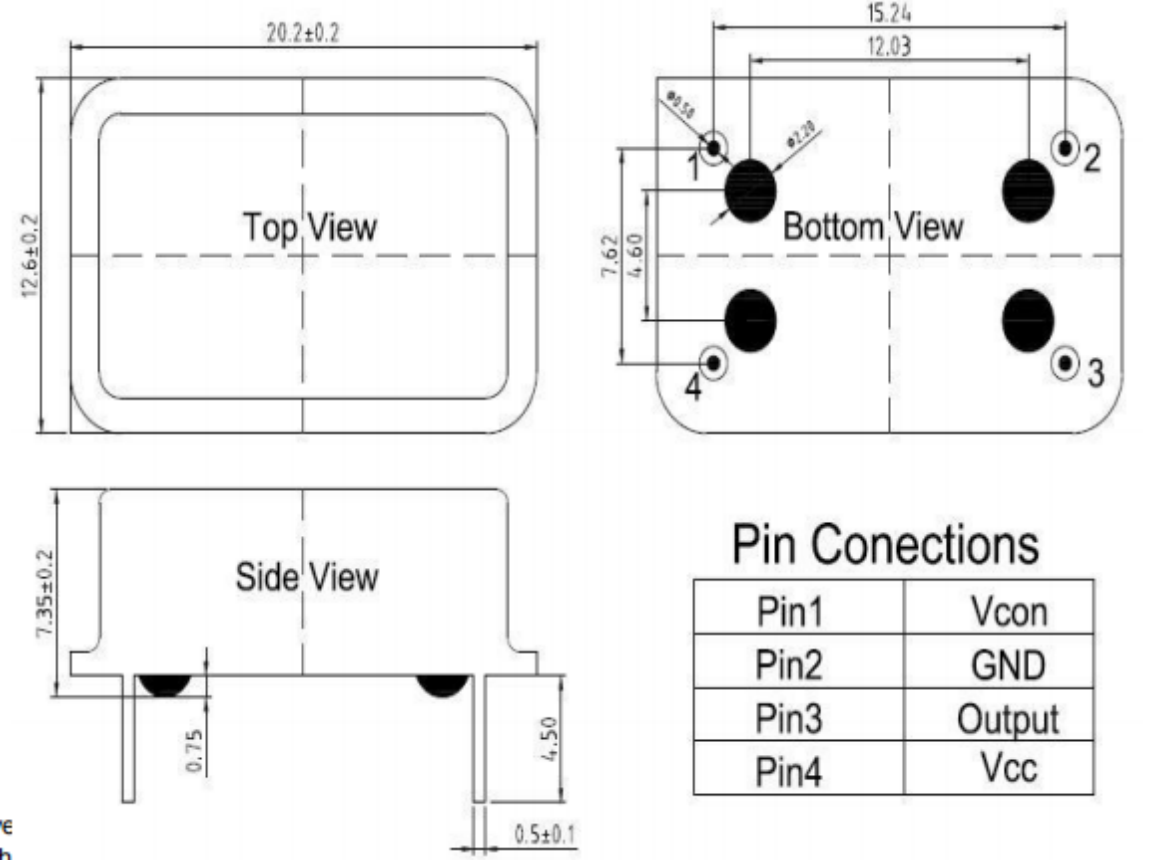

Outline Drawing (Unit: mm):
