10 to 40 GHz 90deg Hybrid Coupler

Quick Detail:

· 90deg Hybrid Coupler

· Directivity > 14 dB

· 10 to 40 GHz Frequency Range

· -55deg to +85deg Operating Temperature

· Input VSWR < 1.5:1

· Max Power 20 Watts(CW)

· CE, RoHS, REACH compliant

· 1 Year Warranty

Description:

The LT-HC90-100400K from ZR is a 3dB 90deg Hybrid Coupler that operates from 10 to 40 GHz and can handle up to 20 Watt (CW) with 20 dB Isolation and 1.8:1 VSWR, The package interface uses 2.92mm Female connectors and is REACH and RoHS compliant. More details for LT-HC90-100400K can be seen below.

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

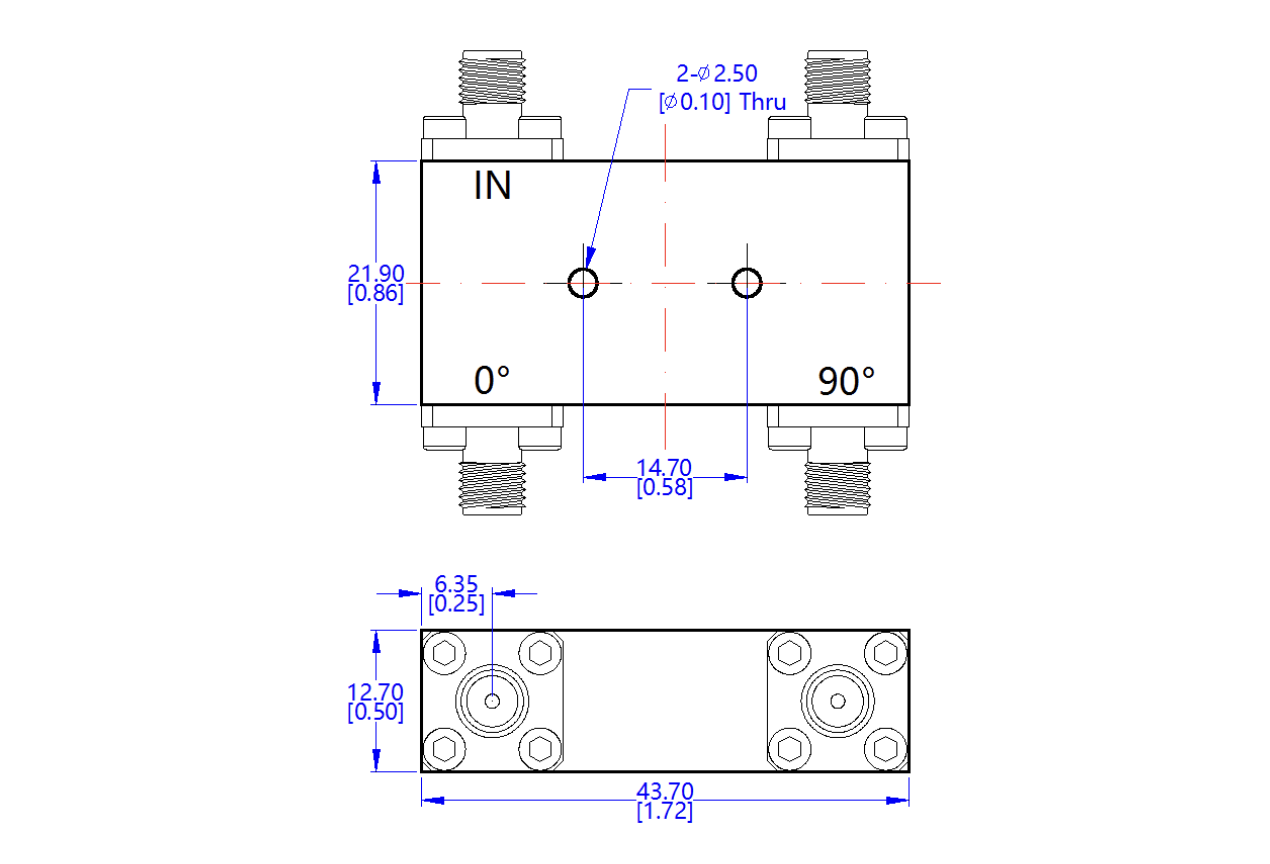

Outline Drawing (Unit: mm):
