18 to 26.5 GHz LT-LA Series Power Amplifier

Quick Detail:

· Aluminum Housing

· Customizable Frequency

· -40℃~+70℃ Operating Temperature

· Small Signal Gain 35dB

· CE, RoHS, REACH compliant

· 1 Year Warranty

Description:

The LT-LA-180265-G35P10 from ZR is a RF Amplifier with Frequency 18 to 26.5 GHz, Small Signal Gain 35 dB, Gain Flatness ±2.0 dB, Output Power 10dBm, Input Power 15 dBm. Tags: Power Amplifier. More details for LT-LA-180265-G35P10 can be seen below.

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

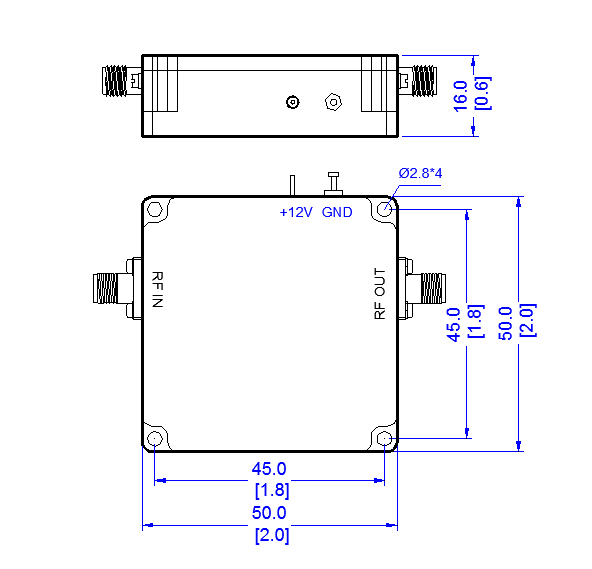

Outline Drawing (Unit: mm):

We take channel advantages as the guide, and take design as the principal part, and focus on providing customers with high-quality products and services.
We have 12000m² thousand level micro assemble purification production lines with ISO standardization.
More than 500 special frequency devices with own intellectual property rights. More than 20MEMS sensor products, and more that 50 authorized and accepted independent intellectual property rights, which includes 8 integrated circuit layouts, 2 invention patents, 5 software copyrights, and 10 registered trademark rights.
