2 to 18 GHz 6dB Directional Coupler

Quick Detail:

·6dB Directional Coupler

· Directivity > 14 dB

· 2 to 18 GHz Frequency Range

· Lost VSWR < 1.5:1

· Coupling 6±1.0 dB

· Max Power 10 Watts(CW)

· CE, RoHS, REACH compliant

· 1 Year Warranty

Description:

The LT-DC6-020180S from ZR is a 6dB Directional Coupler that operates from 2 to 18 GHz and can handle up to 10 Watt (CW) with 14 dB directivity min and 1.5:1 VSWR max,The package interface uses SMA Female connectors and is REACH and RoHS compliant.More details for LT-DC6-020180S can be seen below.

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

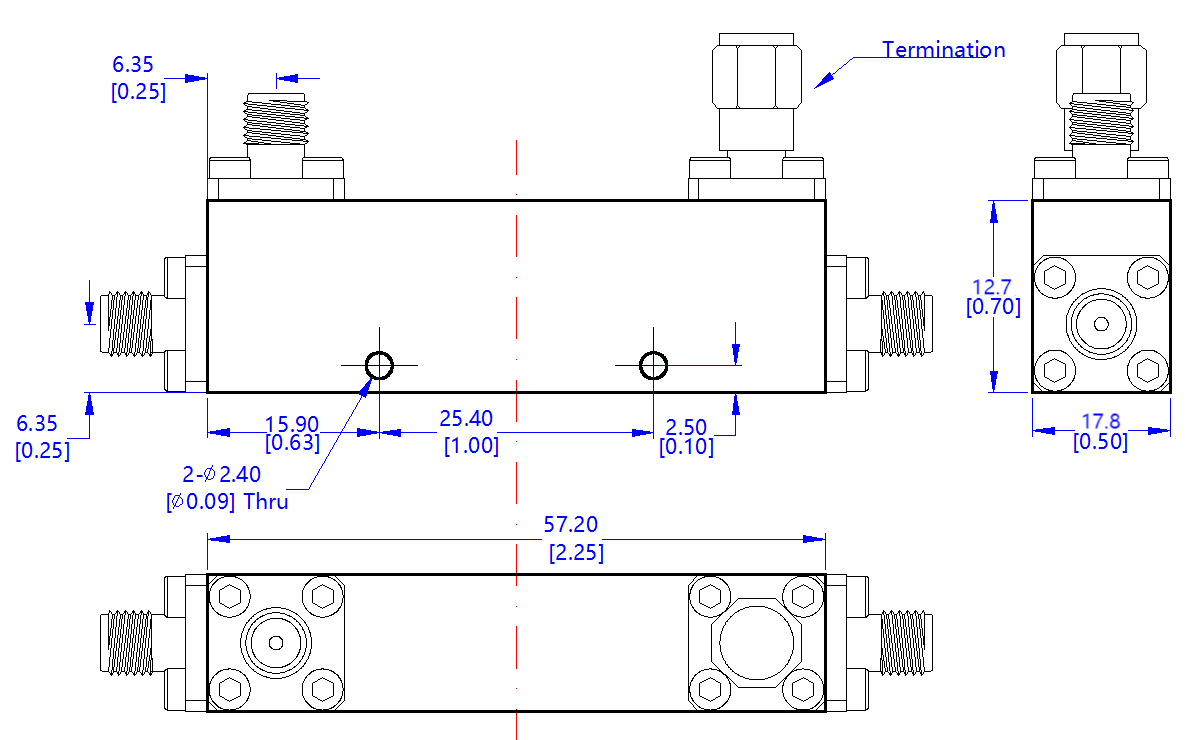

Outline Drawing (Unit: mm):
