2 to 18 GHz 20dB Directional Coupler

Quick Detail:

· 20dB Directional Coupler

· Directivity > 12 dB

· 2 to 18 GHz Frequency Range

· Lost VSWR < 1.5:1

· Coupling 20±1.0 dB

· Max Power 50 Watts(CW)

· CE, RoHS, REACH compliant

· 1 Year Warranty

Description:

The LT-DC20-020180S from ZR is a 20dB Directional Coupler that operates from 2 to 18 GHz and can handle up to 50 Watt (CW) with 12 dB directivity min and 1.5:1 VSWR max,The package interface uses SMA Female connectors and is REACH and RoHS compliant.More details for LT-DC20-020180S can be seen below.

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

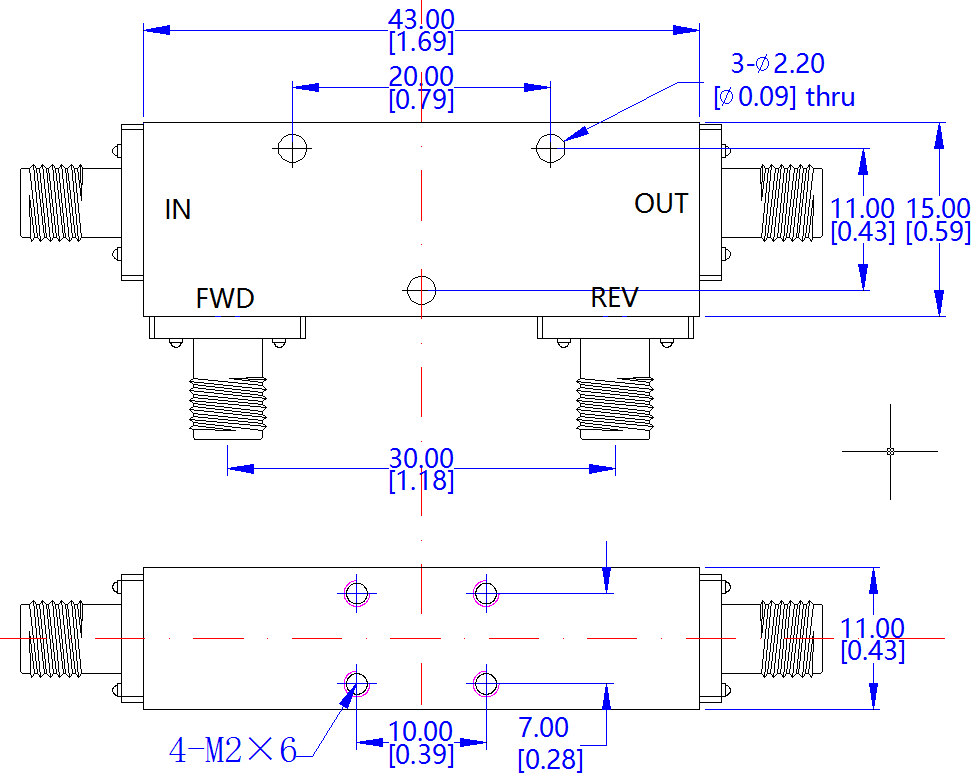

Outline Drawing (Unit: mm):
