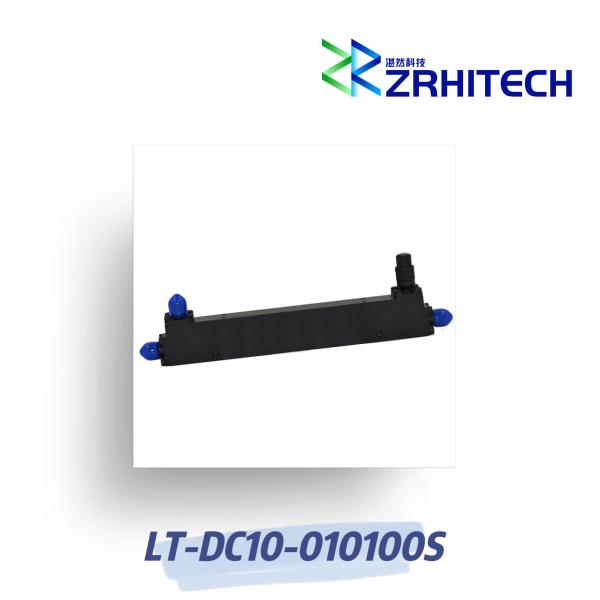

1 to 10 GHz 10dB Directional Coupler

Quick Detail:

· 10dB Directional Coupler

· Directivity > 16 dB

· 1 to 10 GHz Frequency Range

· Lost VSWR < 1.3:1

· Coupling 10±1.0 dB

· Max Power 20 Watts(CW)

· CE, RoHS, REACH compliant

· 1 Year Warranty

Description:

The LT-DC10-010100S from ZR is a 10dB Directional Coupler that operates from 1 to 10 GHz and can handle up to 20 Watt (CW) with 16 dB directivity min and 1.3:1 VSWR max,The package interface uses SMA Female connectors and is REACH and RoHS compliant.More details for LT-DC10-010100S can be seen below.

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

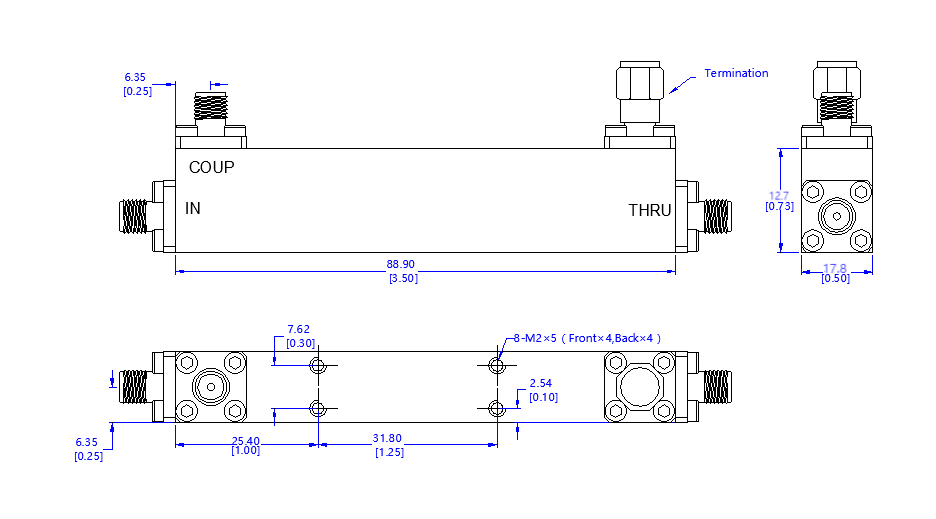

Outline Drawing (Unit: mm):
