33 to 38 GHz 10dB Directional Coupler

Quick Detail:

· 10dB Directional Coupler

· Directivity > 12 dB

· 33 to 38 GHz Frequency Range

· Lost VSWR < 1.6:1

· Coupling 10±1.0 dB

· Max Power 20 Watts(CW)

· CE, RoHS, REACH compliant

· 1 Year Warranty

Description:

The LT-DC10-330380K from ZR is a 10dB Directional Coupler that operates from 33 to 38 GHz and can handle up to 20 Watt (CW) with 12 dB directivity min and 1.6:1 VSWR max,The package interface uses 2.92mm Female connectors and is REACH and RoHS compliant.More details for LT-DC10-330380K can be seen below.

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

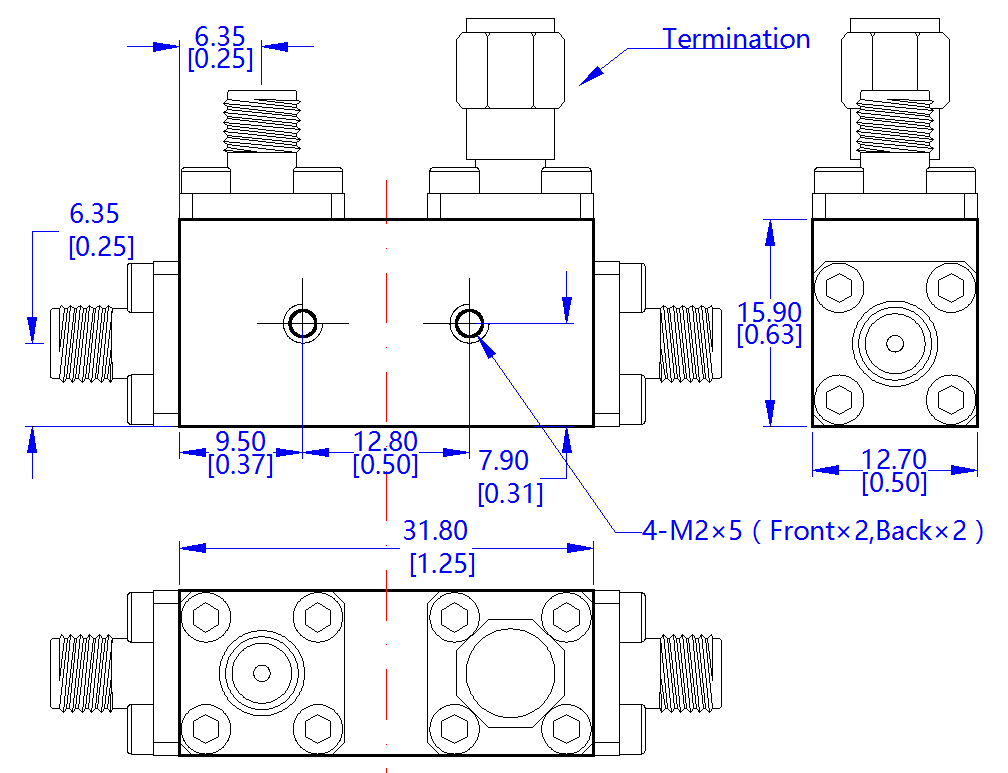

Outline Drawing (Unit: mm):
