0.5 to 20 GHz 10dB Directional Coupler

Quick Detail:

· 10dB Directional Coupler

· Directivity > 15 dB

· 0.5 to 20 GHz Frequency Range

· VSWR < 1.4:1

· Coupling 10±0.8 dB

· Max Power 20 Watts(CW)

· CE, RoHS, REACH compliant

· 1 Year Warranty

Description:

The LT-DC10-005200S from ZR is a 10dB Directional Coupler that operates from 0.5 to 20 GHz and can handle up to 20 Watt (CW) with 15 dB directivity and 1.4:1 VSWR,The package interface uses SMA Female connectors and is REACH and RoHS compliant.More details for LT-DC10-005200S can be seen below.

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

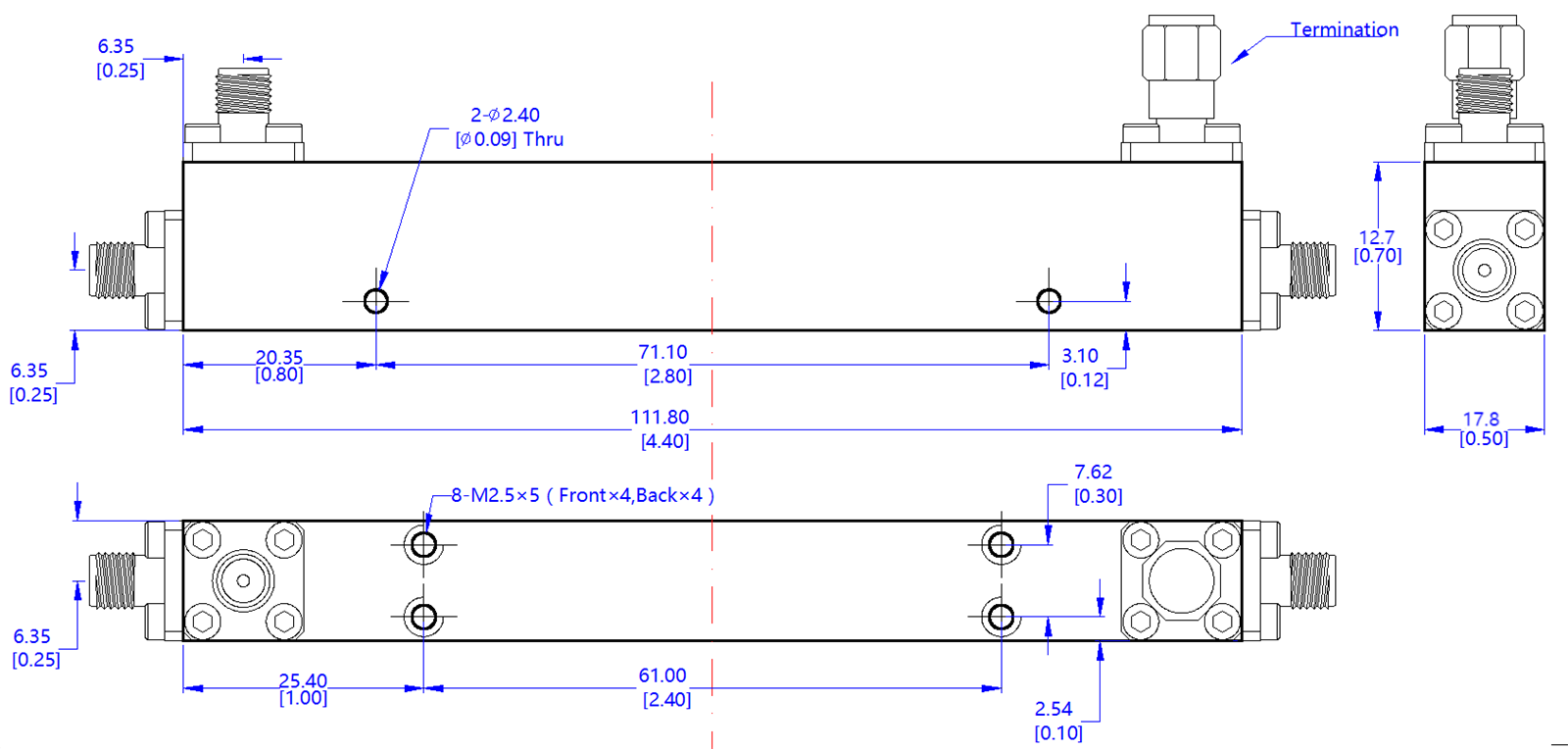

Outline Drawing (Unit: mm):
