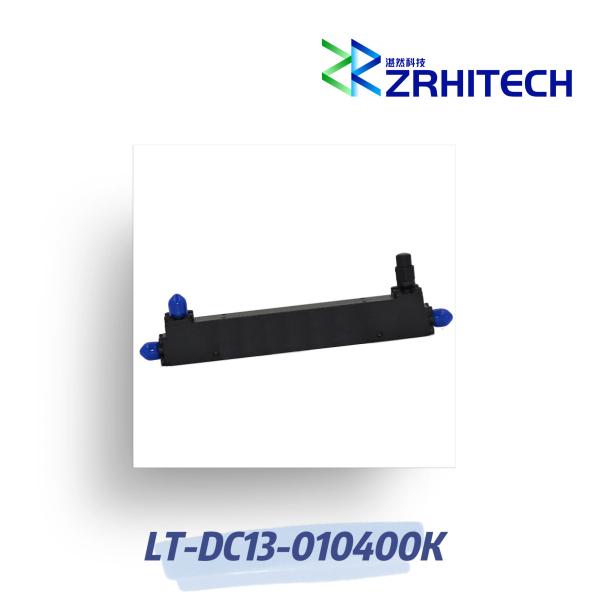

1 to 40 GHz 13dB Directional Coupler

Quick Detail:

· 13dB Directional Coupler

· Directivity > 10 dB

· 1 to 40 GHz Frequency Range

· VSWR < 1.6:1

· Coupling 13±1.0 dB

· Max Power 20 Watts(CW)

· CE, RoHS, REACH compliant

· 1 Year Warranty

Description:

The LT-DC13-010400K from ZR is a 13dB Directional Coupler that operates from 1 to 40 GHz and can handle up to 20 Watt (CW) with 10 dB directivity and 1.6:1 VSWR,The package interface uses 2.92mm Female connectors and is REACH and RoHS compliant.More details for LT-DC13-010400K can be seen below.

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

Outline Drawing (Unit: mm):
