46 to 50 GHz 2-Way Power Divider

Quick Detail:

· 2-Way Power Divider

· Stripline Design

· -55℃~+85℃ operating temperature

· 46 to 50 GHz Frequency Range

· Max Power 15 Watt

· Insertion Loss < 1.8 dB

· Isolation > 20 dB

· CE, RoHS, REACH compliant

· 1 Year Warranty

Description:

The LT-PD-2S-460500 from ZR is a 2-way power divider that operates from 46 to 50 GHz and can handle up to 15 Watt (CW) with 1.8 dB max insertion loss and 20 dB min isolation,The package interface uses 2.92mm-Female connectors and is REACH and RoHS compliant.More details for LT-PD-2S-460500 can be seen below.

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

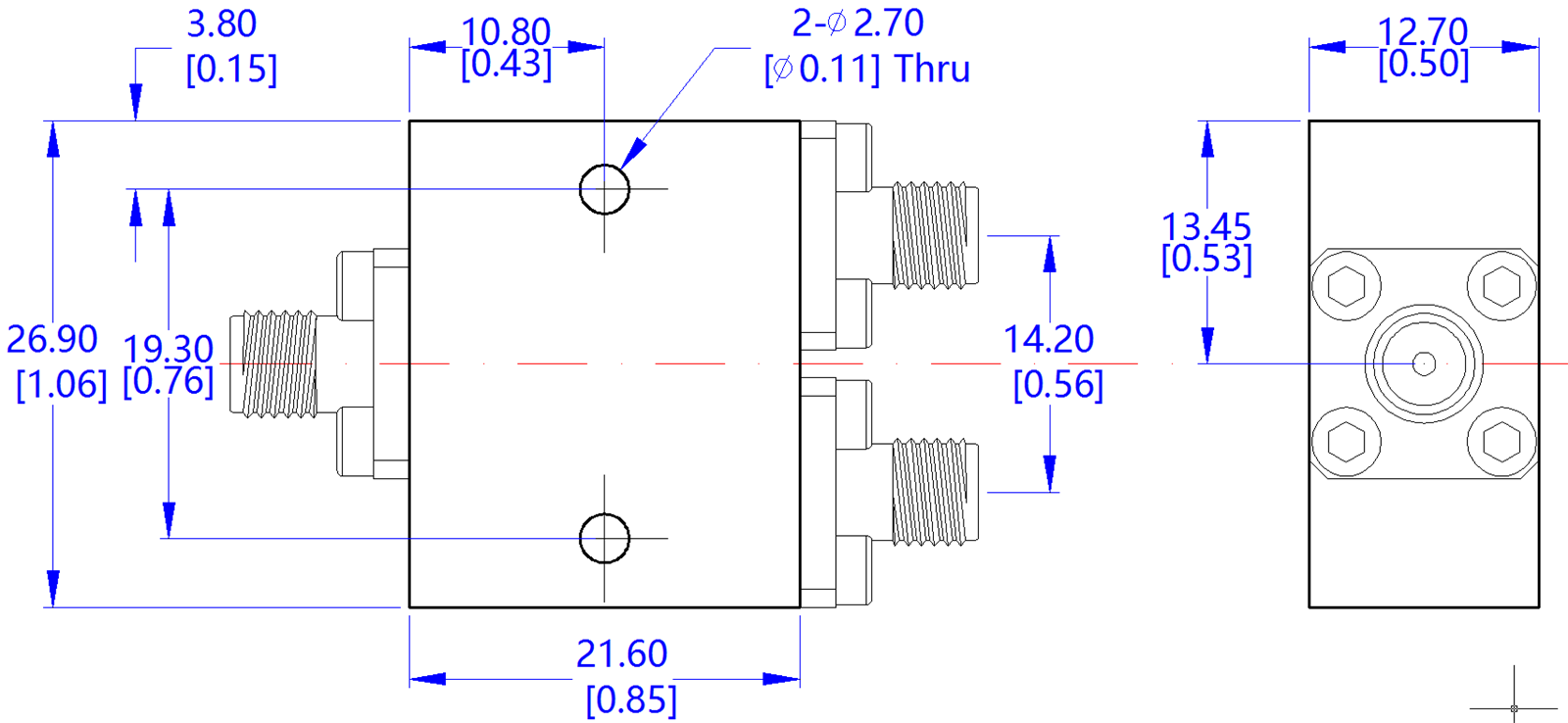

Outline Drawing (Unit: mm):
