1 to 18 GHz 8-Way Power Divider

Quick Detail:

· 8-Way Power Divider

· Stripline Design

· -55℃~+85℃ operating temperature

· 1 to 18 GHz Frequency Range

· Max Power 20 Watt

· Insertion Loss < 5.5 dB

· Isolation > 16 dB

· CE, RoHS, REACH compliant

· 1 Year Warranty

Description:

The LT-PD-8S-010180 from ZR is a 8-way power divider that operates from 1 to 18 GHz and can handle up to 20 Watt (CW) with 5.5 dB max insertion loss and 16 dB min isolation,The package interface uses SMA-Female connectors and is REACH and RoHS compliant.More details for LT-PD-8S-010180 can be seen below.

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

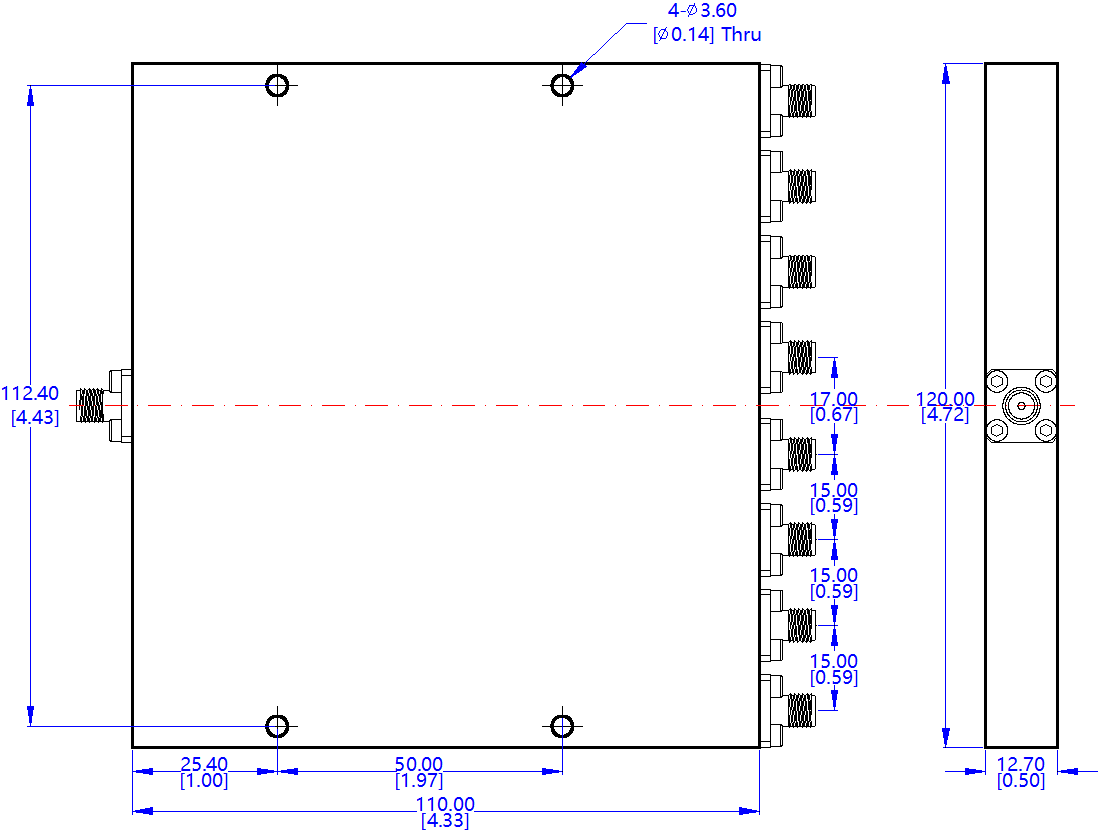

Outline Drawing (Unit: mm):
