10 to 40 GHz 8-Way Power Divider

Quick Detail:

· 8-Way Power Divider

· Stripline Design

· -55℃~+85℃ operating temperature

· 10 to 40 GHz Frequency Range

· Max Power 20 Watt

· Insertion Loss < 3.6 dB

· Isolation > 15 dB

· CE, RoHS, REACH compliant

· 1 Year Warranty

Description:

The LT-PD-8S-100400 from ZR is a 8-way power divider that operates from10 to 40 GHz and can handle up to 20 Watt (CW) with 3.6 dB max insertion loss and 15 dB min isolation,The package interface uses 2.92mm-Female connectors and is REACH and RoHS compliant.More details for LT-PD-8S-100400 can be seen below.

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

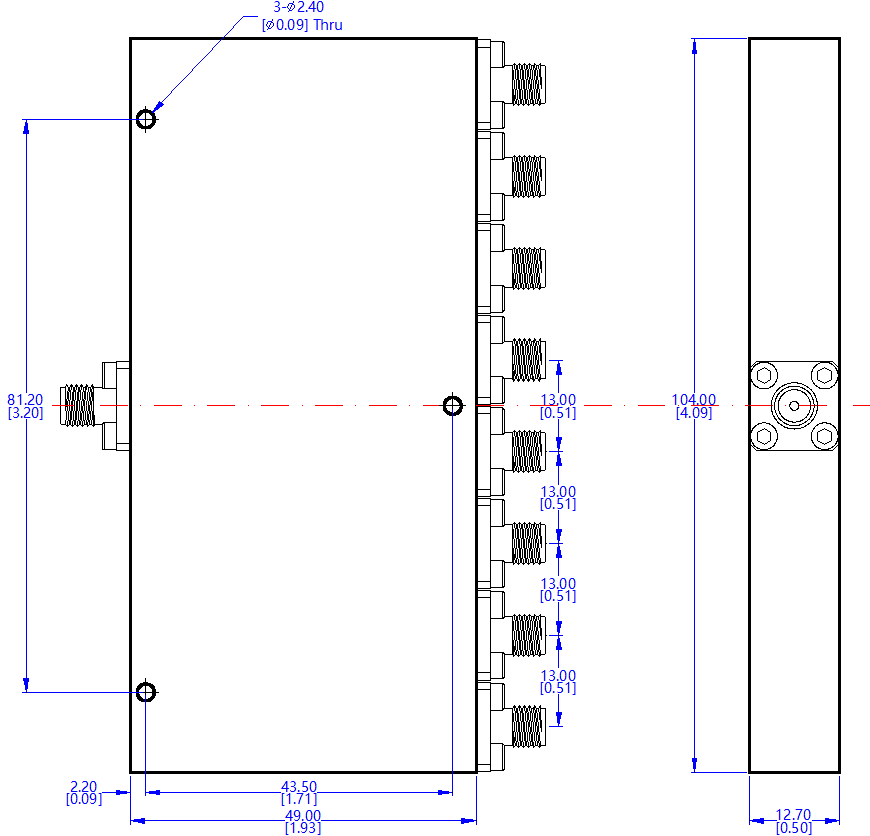

Outline Drawing (Unit: mm):
