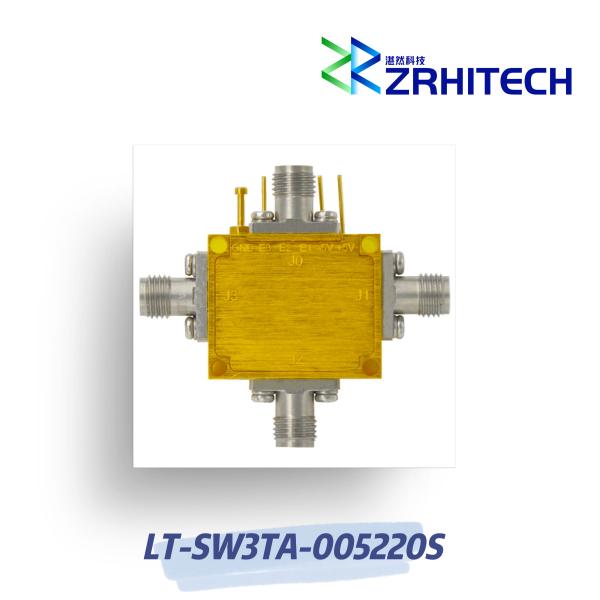

0.5 to 22 GHz LT-SW Series PIN Diode Switch

Quick Detail:

· Aluminum Housing

· Customizable Frequency

· -40℃~+85℃ Operating Temperature

· Fast Switching Time 100ns

· CE, RoHS, REACH compliant

· 1 Year Warranty

Description:

The LT-SW3TA-005220S from ZR is a Absorptive PIN Diode Switch with Frequency 0.5 to 22 GHz, Isolation 60 dB, Switching Speed 100ns. Power Supply with bias +5V/150mA and -5V/50mA. More details for LT-SW3TA-005220S can be seen below.

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

Outline Drawing (Unit: mm):
