2 to 13 GHz LT-SW Series PIN Diode Switch

Quick Detail:

· Aluminum Housing

· Customizable Frequency

· -40℃~+85℃ Operating Temperature

· Fast Switching Time 100ns

· CE, RoHS, REACH compliant

· 1 Year Warranty

Description:

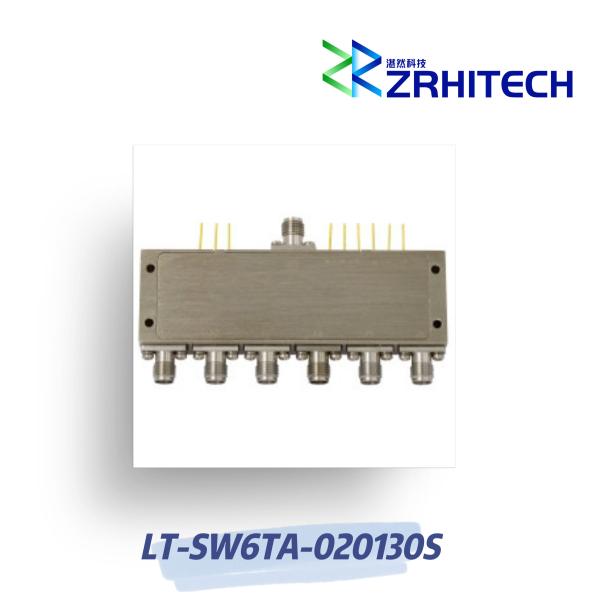

The LT-SW6TA-020130S from ZR is a Absorptive PIN Diode Switch with Frequency 2 to 13 GHz, Isolation 60 dB, Switching Speed 100ns. Power Supply with bias +5V/300mA and -5V/50mA. More details for LT-SW6TA-020130S can be seen below.

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

Outline Drawing (Unit: mm):

We take channel advantages as the guide, and take design as the principal part, and focus on providing customers with high-quality products and services.
We have 12000m² thousand level micro assemble purification production lines with ISO standardization.
More than 500 special frequency devices with own intellectual property rights. More than 20MEMS sensor products, and more that 50 authorized and accepted independent intellectual property rights, which includes 8 integrated circuit layouts, 2 invention patents, 5 software copyrights, and 10 registered trademark rights.
