10MHz~150MHz LT-CR series temperature-compensated voltage controlled crystal oscillator

Quick Detail:

· Aluminum housing

· ﹢3.3V~﹢5V VDD options

· -55℃~85℃ operating temperature

· Small package

· High precision

· Low phase noise

· Optional three-state control function

· Suprious ≤-90dBm

· CE, RoHS, REACH compliant

· 1 Year Warranty

Description:

The LT-CR-TC-16M-2020 is the newest addition to ZR’s line of TCXOs. The standard part offers an ultra-tight stability of ±0.3ppm~±2ppm over -55ºC to +85ºC across a supply voltage range of ﹢3.3V~﹢5V. The LT-CR uses a high refresh rate, or frequency calibration rate, to maintain a linear frequency output during temperature compensation. The 20 mm x 20 mm x 10.5 mm ceramic package and options for 1,000- or 3,000-piece reels make these components ideal for satellite communication, military communication equipment, base station, test and measurement equipment.

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

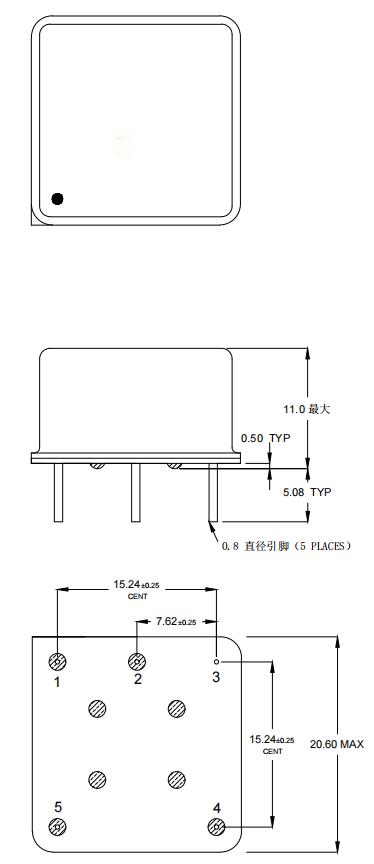

Outline Drawing (Unit: mm):
