10MHz~60MHz LT-CR series temperature-compensated voltage controlled crystal oscillator

Quick Detail:

· Aluminum Housing

· National production design

· -55℃~85℃ operating temperature

· Small Package

· High Precision

· Low Phase Noise

· Optional three-state control function

· CE, RoHS, REACH compliant

· 1 Year Warranty

Description:

The LT-CR-TC-20M-1409 is the newest addition to ZR’s line of TCXOs. The standard part offers an ultra-tight stability of ±0.3 ppm to ±2ppm over -55ºC to +85ºC across a supply voltage range of 3.3V to 5V. The LT-CR uses a high refresh rate, or frequency calibration rate, to maintain a linear frequency output during temperature compensation. The 14.3×9.3×4.5 mm package make these components ideal for the bomb-loaded and arrow-loaded environment.

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

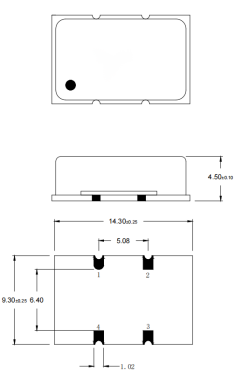

Outline Drawing (Unit: mm):

We take channel advantages as the guide, and take design as the principal part, and focus on providing customers with high-quality products and services.
We have 12000m² thousand level micro assemble purification production lines with ISO standardization.
More than 500 special frequency devices with own intellectual property rights. More than 20MEMS sensor products, and more that 50 authorized and accepted independent intellectual property rights, which includes 8 integrated circuit layouts, 2 invention patents, 5 software copyrights, and 10 registered trademark rights.
