10MHz~150MHz LT-CR series temperature-compensated voltage controlled crystal oscillator

Quick Detail:

· Aluminum Housing

· National production design

· -55℃~85℃ operating temperature

· Small Package

· High Precision

· Low Phase Noise

· Optional three-state control function

· CE, RoHS, REACH compliant

· 1 Year Warranty

Description:

The LT-CR-TC-12M-2020 is the newest addition to ZR’s line of TCXOs. The standard part offers an ultra-tight stability of ±0.3 ppm to ±2ppm over -55ºC to +85ºC across a supply voltage range of 3.3V to 5V. The LT-CR uses a high refresh rate, or frequency calibration rate, to maintain a linear frequency output during temperature compensation. The 20 mm x 20 mm x 10.5 mm ceramic package make these components ideal for ground and on-board environment

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

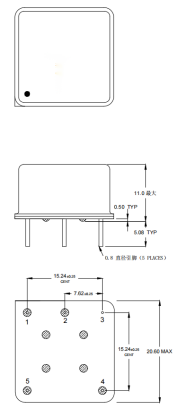

Outline Drawing (Unit: mm):
