LT-SR-299-3030 LT-SR Series SAW Resonators with Frequency Range 298.925MHz to 299.075MHz

298.925MHz to 299.075MHz LT-SR Series SAW Resonator

Quick Detail:

· Aluminum Housing

· -40℃~+85℃ Operating Temperature

· SMD Package

· DC Voltage: 10V

· RF Power Dissipation: 0dBm

· CE, RoHS, REACH Compliant

· 1 Year Warranty

Description:

The LT-SR-299-3030 from ZR is a SAW Resonator with Frequency 298.925 to 299.075 MHz, Centre Frequency 299 MHz, Insertion Loss 1.5 to 2.2 dB, Capacitance 2.0 pF, Quality Factor Loaded 8000. Tags: Surface Mount, SAW Resonator. More details for LT-SR-299-3030 can be seen below.

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

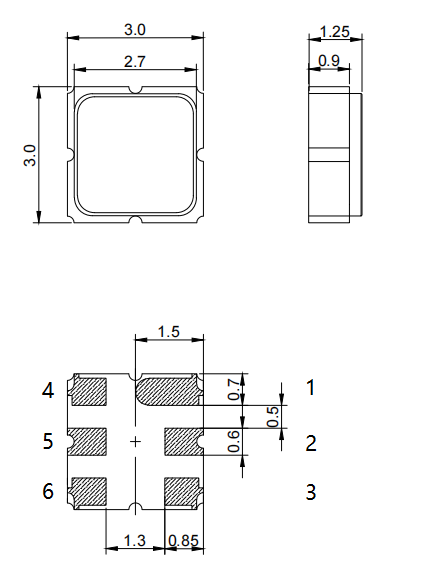

Outline Drawing (Unit: mm):

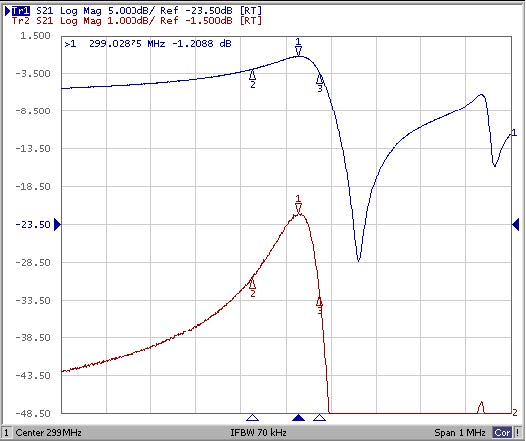

Typical Frequency Response
