LT-SR-315-2016 LT-SR Series SAW Resonators with Frequency Range 314.9MHz to 315.1MHz

314.900MHz to 315.100MHz LT-SR Series SAW Resonator

Quick Detail:

· Aluminum Housing

· -40℃~+85℃ Operating Temperature

· SMD Package

· DC Voltage: 10V

· RF Power Dissipation: 10dBm

· CE, RoHS, REACH Compliant

· 1 Year Warranty

Description:

The LT-SR-315-2016 from ZR is a SAW Resonator with Frequency 314.900 to 315.100 MHz, Centre Frequency 315 MHz, Insertion Loss 1.3 to 2.2 dB, Quality Factor Loaded 12800. Tags: Surface Mount, SAW Resonator. More details for LT-SR-315-2016 can be seen below.

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

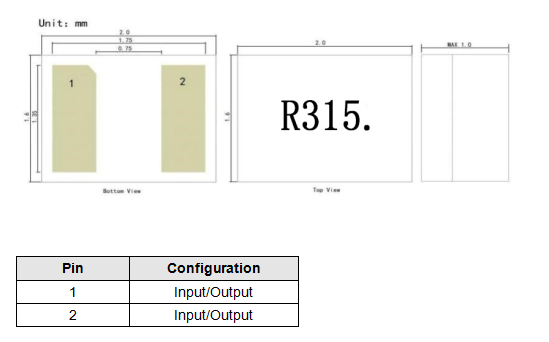

Outline Drawing (Unit: mm):

Typical Frequency Response
