LT-SR-330-3070 LT-SR Series SAW Resonators with Frequency Range 329.925MHz to 330.075MHz
329.925MHz to 330.075MHz LT-SR Series SAW Resonator


Quick Detail:

· Aluminum Housing

· -40℃~+85℃ Operating Temperature

· SMD Package

· DC Voltage: 10V

· RF Power Dissipation: 10dBm

· CE, RoHS, REACH Compliant

· 1 Year Warranty

Description:

The LT-SR-330-3070 from ZR is a SAW Resonator with Frequency 329.925MHz to 330.075 MHz, Centre Frequency 330 MHz, Insertion Loss 1.5 to 2.1 dB, Capacitance 2.0 pF, Quality Factor Loaded 12800. Tags: Surface Mount, SAW Resonator. More details for LT-SR-330-3070 can be seen below.


Specifications:
Electrical / Optical Characteristics (Ta=25℃±3℃)

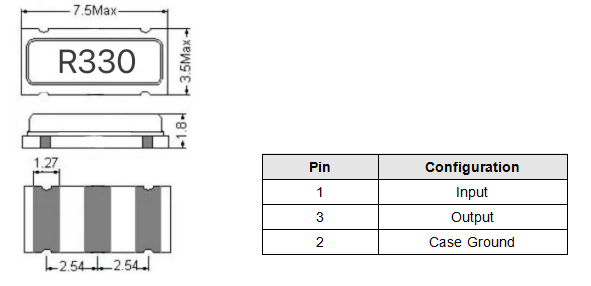

Outline Drawing (Unit: mm):




Typical Frequency Response
