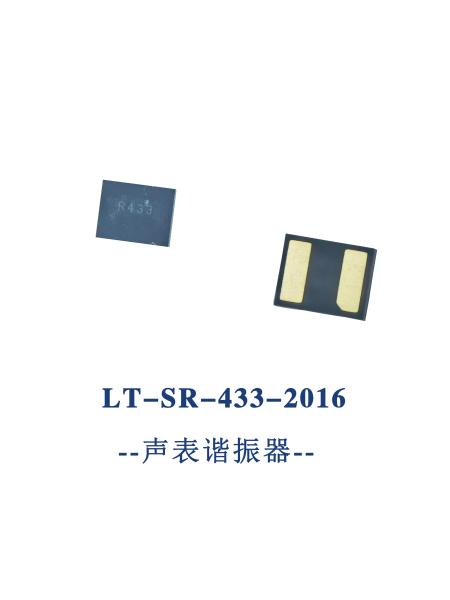

LT-SR-433-2016(±50K) LT-SR Series SAW Resonators with Frequency Range 433.870MHz to 433.970MH

433.870MHz to 433.970MHz LT-SR Series SAW Resonator

Quick Detail:

· Aluminum Housing

· -40℃~+85℃ Operating Temperature

· SMD Package

· DC Voltage: ±30V

· RF Power Dissipation: 10dBm

· CE, RoHS, REACH Compliant

· 1 Year Warranty

Description:

The LT-SR-433-2016(±50K) from ZR is a SAW Resonator with Frequency 433.870MHz to 433.970MHz, Centre Frequency 433.920MHz, Insertion Loss 1.3 to 2.1 dB, Quality Factor Loaded 12000. Tags: Surface Mount, SAW Resonator. More details for LT-SR-433-2016(±50K) can be seen below.

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

Outline Drawing (Unit: mm):




Typical Frequency Response

We take channel advantages as the guide, and take design as the principal part, and focus on providing customers with high-quality products and services.
We have 12000m² thousand level micro assemble purification production lines with ISO standardization.
More than 500 special frequency devices with own intellectual property rights. More than 20MEMS sensor products, and more that 50 authorized and accepted independent intellectual property rights, which includes 8 integrated circuit layouts, 2 invention patents, 5 software copyrights, and 10 registered trademark rights.
