    Custom Crystal Oscillator With 50MHz Frequency Range For Flexibility

    Ask Lasest Price
    Brand Name : ZR Hi-Tech
    Model Number : LT-CR-O-50M-7050
    Payment Terms : T/T
    Delivery Time : 4 weeks
    • Product Details
    • Company Profile

    Custom Crystal Oscillator With 50MHz Frequency Range For Flexibility

    50MHz LT-CR series crystal oscillator


    Quick Detail:

    · Aluminum housing

    · Broadband Frquency

    · -40℃~+105℃ operating temperature

    · SMD package

    · High precision

    · Low phase noise

    · CMOS Output Waveform

    · CE, RoHS, REACH compliant

    · 1 Year Warranty


    Description:


    The LT-CR-O-50M-7050 is the newest addition to ZR’s line of Crystal Oscillator (XO) with a HCMOS output from 1 to 50 MHz. This XO requires a supply voltage of 2.97V to 3.63V and consumes 30 mA of current. They are available in a hermetically sealed surface-mount package and measure 7x5x1.4mm. These XOs are widely used in various electronic equipment and instruments in the field of national defense.


    Specifications:

    Electrical / Optical Characteristics (Ta=25±3)


    ItemsSpecificationConditions
    Part NumberLT-CR-O-50M-7050
    Frequency Range50MHz
    Operating Voltage2.97~3.63V
    Frequency Stability vs. Temperature±50ppm@-40~105℃
    Output WaveformHCMOS
    Output Load15pF
    Duty Cycle(%)40~60
    Rise/Fall Time(ns)6ns10%~90%0.1Vdd→0.9Vdd
    Current Consumption(mA)303.3V non-loaded
    Dimension7x5x1.4mm
    Note: for custom specs, please contact us directly.

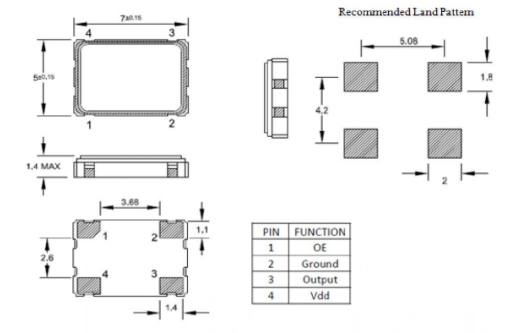

    Outline Drawing (Unit: mm):
