707.5MHz RF SAW Band Pass Filter

    Buy cheap 707.5MHz RF SAW Band Pass Filter from wholesalers

    Buy cheap 707.5MHz RF SAW Band Pass Filter from wholesalers
    • Buy cheap 707.5MHz RF SAW Band Pass Filter from wholesalers

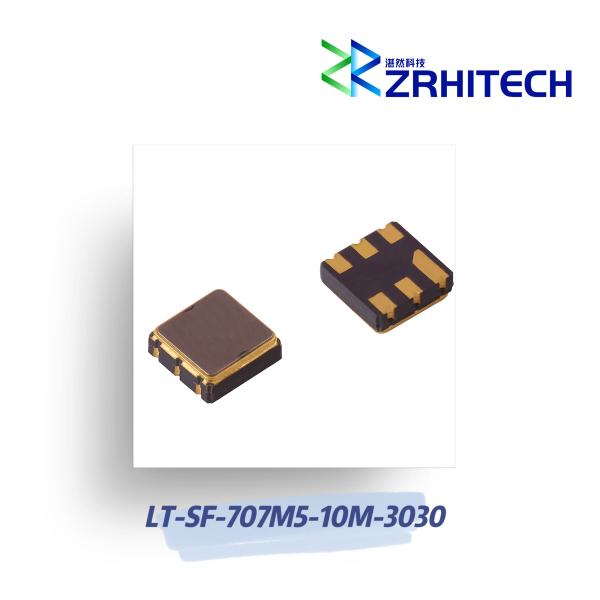

    707.5MHz RF SAW Band Pass Filter

    Ask Lasest Price
    Brand Name : ZR Hi-Tech
    Model Number : LT-SF-707M5-10M-3030
    Payment Terms : T/T
    Delivery Time : 4 weeks
    • Product Details
    • Company Profile

    707.5MHz RF SAW Band Pass Filter

    707.5MHz LT-SF series RF SAW Band Pass Filter


    Quick Detail:

    · Aluminum Housing

    · Customizable Frequency

    · -40℃~+85℃ Operating Temperature

    · Sourface Mount Package

    · Small Size

    · Low Cost

    · CE, RoHS, REACH compliant

    · 1 Year Warranty


    Description:


    The LT-SF-707M5-10M-3030 from ZR is a Band Pass Filter with Frequency 699 to 716 MHz,Bandwidth 15 MHz, Center Frequency 707.5 MHz, Insertion Loss 1.6 to 2.5 dB, Rejection 18 to 40dB. Tags: Surface Mount, RF SAW Filter. This filter is widely used in various Wireless Communication.More details for LT-SF-707M5-10M-3030 can be seen below.


    Specifications:

    Electrical / Optical Characteristics (Ta=25℃±3℃)


    ItemsSpecificationConditions
    Part NumberLT-SF-707M5-10M-3030
    Center Frequency707.5MHz
    Insertion Loss
    Insertion Loss(699~716MHz)2.5dB Max.;1.6dB Typ.
    Ripple in Bandwidth1.7dB Max.; 0.6dB Typ.
    Group Delay Variation
    Input VSWR2.1 Max.; 1.7 Typ.
    Output VSWR2.1 Max.; 1.7 Typ.
    Attenuation18dB Min.@1~692MHz
    13dB Min.@729~746 MHz
    40dB Min.@1386~1442MHz
    38dB Min.@1574.42~1576.42MHz
    30dB Min.@2084~2158MHz
    25dB Min.@2782~2874 MHz
    Dimension3x3x1.25mm
    Note: for custom specs, please contact us directly.

    Outline Drawing (Unit: mm):
