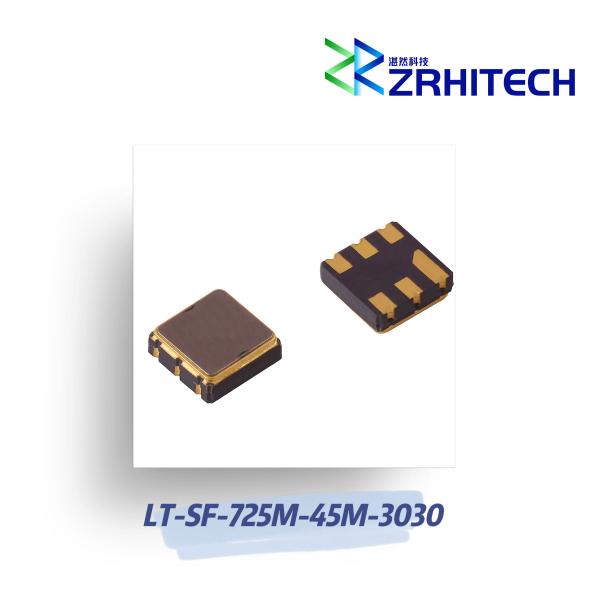

725MHz LT-SF series RF SAW Band Pass Filter

Quick Detail:

· Aluminum Housing

· Customizable Frequency

· -40℃~+85℃ Operating Temperature

· Sourface Mount Package

· Small Size

· Low Cost

· CE, RoHS, REACH compliant

· 1 Year Warranty

Description:

The LT-SF-725M-45M-3030 from ZR is a Band Pass Filter with Frequency 703 to 748 MHz, Bandwidth 45 MHz, Center Frequency 725 MHz, Insertion Loss 1.8 to 2.5 dB, Rejection 20 to 30 dB. Tags: Surface Mount, RF SAW Filter. This filter is widely used in various Wireless Communication.More details for LT-SF-725M-45M-3030 can be seen below.

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

Outline Drawing (Unit: mm):

We take channel advantages as the guide, and take design as the principal part, and focus on providing customers with high-quality products and services.
We have 12000m² thousand level micro assemble purification production lines with ISO standardization.
More than 500 special frequency devices with own intellectual property rights. More than 20MEMS sensor products, and more that 50 authorized and accepted independent intellectual property rights, which includes 8 integrated circuit layouts, 2 invention patents, 5 software copyrights, and 10 registered trademark rights.
