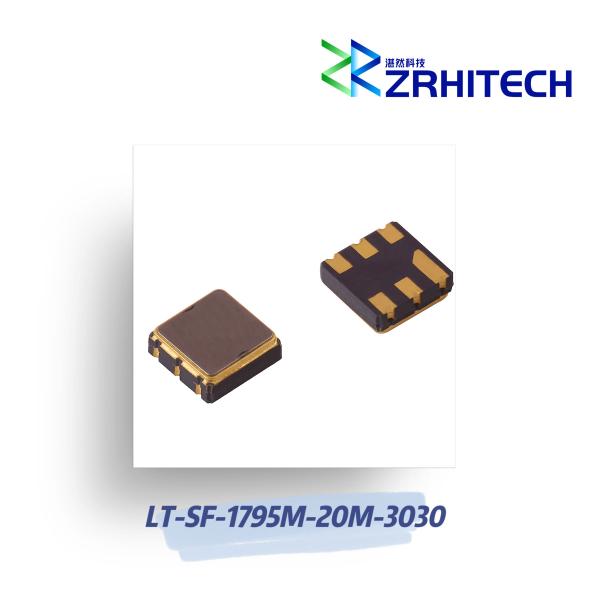

1795MHz LT-SF series RF SAW Band Pass Filter

Quick Detail:

· Aluminum Housing

· Customizable Frequency

· -40℃~+85℃ Operating Temperature

· Sourface Mount Package

· Small Size

· Low Cost

· CE, RoHS, REACH compliant

· 1 Year Warranty

Description:

The LT-SF-1795M-20M-3030 from ZR is a Band Pass Filter with Frequency 1785 to 1805 MHz, Bandwidth 20 MHz, Center Frequency 1795 MHz, Insertion Loss 2.4 to 3.0 dB, Rejection 35 to 40 dB. Tags: Surface Mount, RF SAW Filter. This filter is widely used in various Wireless Communication.More details for LT-SF-1795M-20M-3030 can be seen below.

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

Outline Drawing (Unit: mm):
