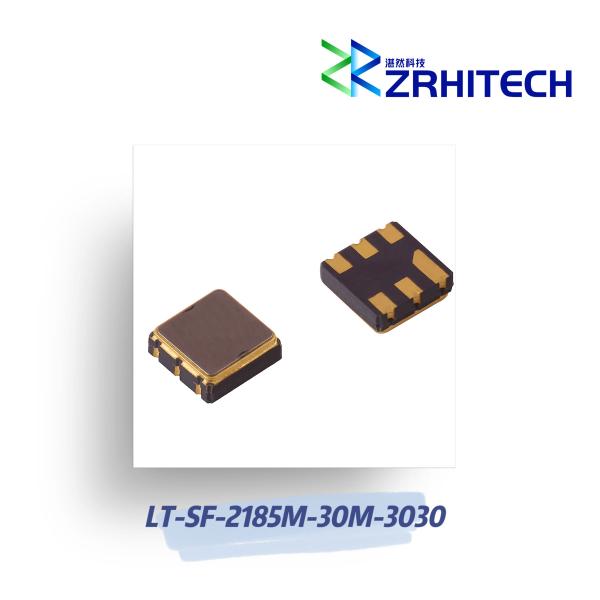

    2185MHz RF SAW Pass Band Filter

    Ask Lasest Price
    Brand Name : ZR Hi-Tech
    Model Number : LT-SF-2185M-30M-3030
    Payment Terms : T/T
    Delivery Time : 4 weeks
    • Product Details
    • Company Profile

    2185MHz RF SAW Pass Band Filter

    2185MHz LT-SF series RF SAW Band Pass Filter


    Quick Detail:

    · Aluminum Housing

    · Customizable Frequency

    · -40℃~+85℃ Operating Temperature

    · Sourface Mount Package

    · Small Size

    · Low Cost

    · CE, RoHS, REACH compliant

    · 1 Year Warranty


    Description:


    The LT-SF-2185M-30M-3030 from ZR is a Band Pass Filter with Frequency 2170 to 2200 MHz, Bandwidth 50 MHz, Center Frequency 2185 MHz,Insertion Loss 2.6 to 3.5 dB, Rejection 30 to 35 dB. Tags: Surface Mount, RF SAW Filter. This filter is widely used in various Wireless Communication.More details for LT-SF-2185M-30M-3030 can be seen below.


    Specifications:

    Electrical / Optical Characteristics (Ta=25℃±3℃)


    ItemsSpecificationConditions
    Part NumberLT-SF-2185M-30M-3030
    Center Frequency2185MHz
    Insertion Loss-
    Insertion Loss(2170.00~2200.00 MHz)3.5dB Max.; 2.6dB Typ.
    Ripple in Bandwidth1.0dB Max.; 0.6dB Typ.
    Group Delay Variation30ns Max.;10ns Typ.
    Input VSWR2.0 Max.;1.5 Typ.
    Output VSWR2.0 Max.;1.5 Typ.
    Attenuation35dB Min.@DC-2000.00MHz
    35dB Min.@2000.00-2110.00MHz
    38dB Min.@3000.00-3100.00MHz
    30dB Min.@3900.00-4000.00MHz
    Dimension3x3x1.25mm
    Note: for custom specs, please contact us directly.

    Outline Drawing (Unit: mm):
